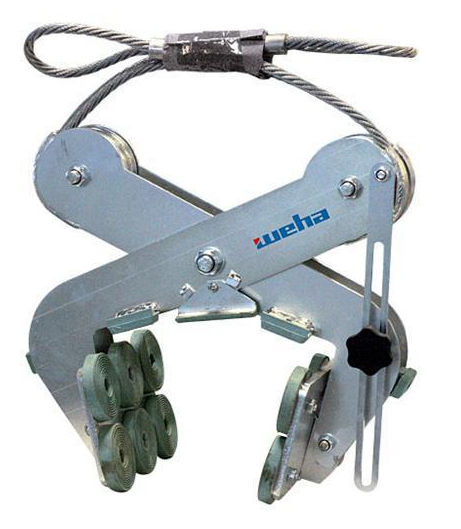

The Weha Riba Series Cable Scissor Lifters are perfect for picking up slab materials from a horizontal position and lifting them to a vertical position. Likewise, the Riba Series Cable Scissor lifters will take Slab materials and transition them from a vertical position and lower them to a horizontal position. Riba lifters are operated by two super strong steel wire cables and roller bearings. During lifting and tilting operations the cable is always tight and holding pressure on the material. The two lifting cables have eye loops for easy connection to eye hooks, clamps, or shackles. Use the Riba lifter with forklifts, jib cranes, and overhead crane systems. The Riba frame is finished with a galvanized coating for corrosion resistance and a long working life. Riba lifters include 3” diameter rubber grip pads that create a strong grip on slab materials. The rubber pads are easily replaceable.
- Robust, galvanized steel frame for strength and corrosion resistance
- KTV extended frame supports larger workpieces and includes crossbars for added flexibility
- Four adjustable vacuum plates with quick adjustment pins allow rapid adjustments
- Individual pad shutoffs provide users with added application flexibility
- Steel vacuum reserve tank and PVC vacuum control slider valve
- Electric vacuum pump 12V DC
- Battery operating time of approximately 7 hours on a full charge
- Audible and visual alarm warns of vacuum loss
- Vacuum gauge with color guide clearly displays vacuum level for safe operation
- Manual tilt from 0 to 90 Degrees
- Made in Italy
- Holds consistent pressure on material when tilting
- Long lasting galvanized finish
- Rubber gripping pads are easily replaced
- Wide grip range 0” -11”
Product Attributes
| Finish | Galvanized |
| Grip Range | 0″- 11″ |
| Weight Capacity | 3,087 lbs. |
| Weight | 64 lbs |
