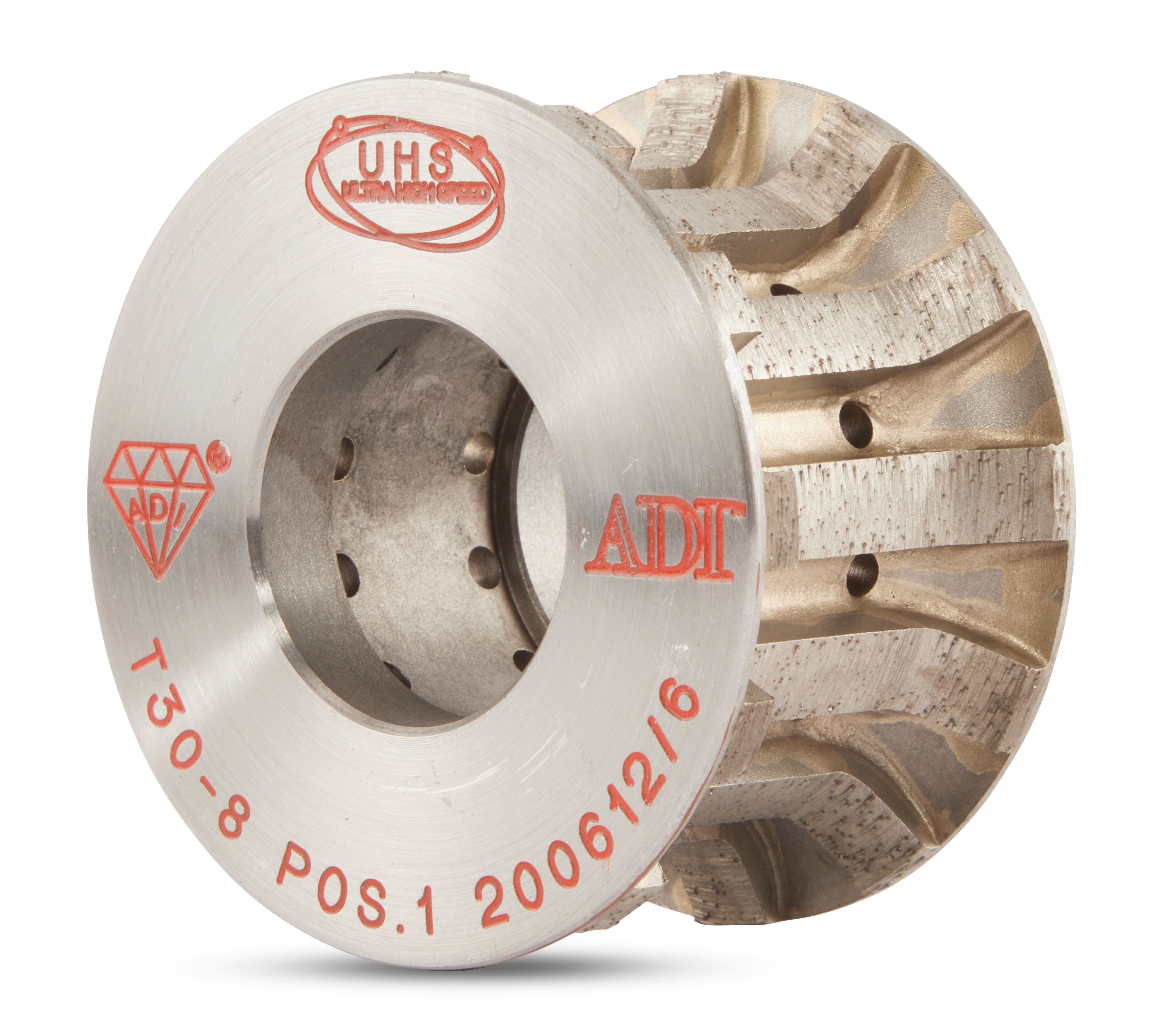

ADI UHS® is the premier CNC tooling in the stone industry. UHS® delivers the fastest feed rates, longest tool life and the highest polish quality of any profile wheels in the stone industry. High volume fabrication shops and anyone familiar with UHS® understand an investment in UHS® pays dividends in the form of the lowest cost per linear meter with the best possible finish quality. In addition to the tool quality and performance, an investment in UHS® also means access to ADI’s state of the art reshaping service and industry leading support from GranQuartz’s team of technicians.
- Unsurpassed production speed with unmatched tool life and profile integrity
- Every tool is individually precision balanced for optimum performance
- Precision manufactured water slots deliver more water where it is needed
- Customized pre-set labels on each wheel reduce set up time by 50%
- ADI® certified reshaping service available
Product Attributes
| Arbor Bore | 35mm |
| Dimensions | R3, R3 |
| Feed Rate | 59-150 in/min |
| Grit Step | 1 |
| Inner Diameter | 60mm |
| Material Thickness | 3cm |
| Outer Diameter | 77mm |
| Profile | T30-8 |
| RPM | 5,000-6,000 |
| Stock Removal | To Shape |
| Tooling Series | 80 |
| Wheel Type | UHS |
| Weight | 1.64 lbs |
